We will use the Slang shader language to write our shaders. By using Slang we will have only one code for all the supported graphics API.

The CMakeLists.txt file supports the compilation of the shaders in the SPIR-V and DXIL intermediates formats.

Add a new shaders directory under the src directory, then add a new triangle_color.slang file into the src/shaders directory with the following content :

struct VertexInput {
   float3 position : POSITION;
   float3 color    : COLOR;
};

struct VertexOutput {
   float4 position : SV_POSITION;
   float3 color    : COLOR;
};

VertexOutput vertexMain(VertexInput input) {
   VertexOutput output;
   output.position = float4(input.position, 1.0) ;
   output.color = input.color;
   return output;
}

float4 fragmentMain(VertexOutput input) : SV_TARGET {
   return float4(input.color, 1.0);
}

The POSITION and COLOR attributes in the VertexInput struct refers to the fields of the vertexAttributes array. Since Vulkan does not use textual attributes names but binding indices the fields must be in the same order in the struct and in the array.

The fragment shader uses the vertex color to produce a nice RGB gradient (the GPU calculates the color interpolation for each fragment/pixel from the vertices colors).

Reload the CMake project to add the new shader code to the list of shaders to compile then build the shaders target.

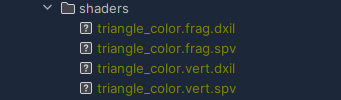

If you look into the shaders directory in the root of your project you will see four files with the compiled vertex and fragment shaders, both in SPIR-V and DXIL :


Now we can load the shaders in our onInit() method, just after the vertex layout creation :

const auto vertexLayout = vireo->createVertexLayout(sizeof(Vertex), vertexAttributes);
const auto vertexShader = vireo->createShaderModule("shaders/triangle_color.vert");
const auto fragmentShader = vireo->createShaderModule("shaders/triangle_color.frag");
...
