Detailed Description

Base class for all UI widgets

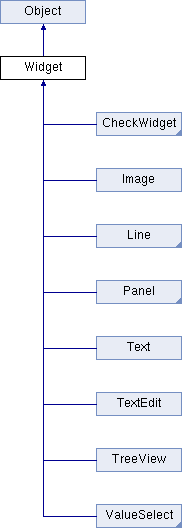

Inheritance diagram for Widget:

Public Types
enum	Type { WIDGET, PANEL, BOX, LINE, FRAME, BUTTON, TOGGLEBUTTON, TEXT, TEXTEDIT, SCROLLBAR, TREEVIEW, IMAGE }
	Widget type. More...

enum	AlignmentType { NONE, FILL, CENTER, HCENTER, VCENTER, TOP, BOTTOM, LEFT, RIGHT, TOPCENTER, BOTTOMCENTER, LEFTCENTER, RIGHTCENTER, TOPLEFT, BOTTOMLEFT, BOTTOMRIGHT, TOPRIGHT, LEFTTOP, LEFTBOTTOM, RIGHTBOTTOM, RIGHTTOP, CORNERTOPLEFT, CORNERTOPRIGHT, CORNERBOTTOMLEFT, CORNERBOTTOMRIGHT }
	Widget placement (relative to the parent widget) More...

Public Member Functions
	Widget (Type=WIDGET)

	~Widget () override = default

Type	getType () const

bool	isVisible () const

void	show (bool show=true)

bool	isEnabled () const

void	enable (bool isEnabled=true)

void	setPos (float x, float y)

float	getWidth () const

float	getHeight () const

virtual void	setSize (float width, float height)

const Rect &	getRect () const

void	setRect (float x, float y, float width, float height)

void	setRect (const Rect &rect)

AlignmentType	getAlignment () const

void	setAlignment (AlignmentType alignment)

std::shared_ptr< Font >	getFont () const

void	setFont (const std::shared_ptr< Font > &font)

float	getFontScale () const

virtual void	setFontScale (float fontScale)

bool	isFocused () const

Widget *	getParent () const

template<typename T >
std::shared_ptr< T >	add (std::shared_ptr< T > child, const AlignmentType alignment, const std::string &resource="", const bool overlap=false)

virtual void	remove (const std::shared_ptr< Widget > &child)

virtual void	removeAll ()

void	setPadding (float padding)

float	getPadding () const

float	getVBorder () const

float	getHBorder () const

void	setVBorder (float size)

void	setHBorder (float size)

bool	isDrawBackground () const

void	setDrawBackground (bool drawBackground)

bool	isPushed () const

bool	isPointed () const

bool	isFreezed () const

bool	isRedrawOnMouseEvent () const

bool	isOverlapping () const

Rect	getChildrenRect () const

void	setFreezed (const bool f)

void	setPushed (const bool p)

void	refresh () const

void	setResource (std::shared_ptr< Resource >)

uint32	getGroupIndex () const

void	setGroupIndex (int32 index)

void *	getUserData () const

void	setUserData (void *data)

float	getTransparency () const

void	setTransparency (float alpha)

void	resizeChildren ()

Widget *	setFocus (bool=true)

virtual void	eventCreate ()

virtual void	eventDestroy ()

virtual void	eventShow ()

virtual void	eventHide ()

virtual void	eventEnable ()

virtual void	eventDisable ()

virtual void	eventMove (float x, float y)

virtual void	eventResize ()

virtual bool	eventKeyDown (Key key)

virtual bool	eventKeyUp (Key key)

virtual bool	eventMouseDown (MouseButton button, float x, float y)

virtual bool	eventMouseUp (MouseButton button, float x, float y)

virtual bool	eventMouseMove (uint32, float x, float y)

virtual void	eventGotFocus ()

virtual void	eventLostFocus ()

Public Member Functions inherited from Object
void	connect (const Signal::signal &name, const Signal::Handler &handler)

void	connect (const Signal::signal &name, const std::function< void ()> &handler)

void	emit (const Signal::signal &name, void *params=nullptr)

virtual std::string	toString () const

	Object () = default

virtual	~Object () = default

Protected Member Functions
void	allowingFocus (bool allow=true)

Protected Attributes
const Type	type

Rect	rect

Rect	defaultRect

float	hborder {0}

float	vborder {0}

float	padding {0}

bool	overlap {false}

bool	focused {false}

bool	allowFocus {false}

bool	allowChildren {true}

bool	drawBackground {true}

bool	moveChildrenOnPush {false}

bool	redrawOnMouseEvent {false}

bool	redrawOnMouseMove {false}

float	transparency {1.0f}

Widget *	parent {nullptr}

AlignmentType	alignment {NONE}

std::shared_ptr< Resource >	resource

std::list< std::shared_ptr< Widget > >	children

Window *	window {nullptr}

void *	style {nullptr}

bool	mouseMoveOnFocus {false}

float	fontScale {0.0f}

Member Enumeration Documentation

enum AlignmentType

Widget placement (relative to the parent widget)

Enum Values	Documentation
NONE
FILL	The child widget is centered and resized to the parent content size.
CENTER	The child widget is centered (and take all the parent content size)
HCENTER	The child widget is horizontally centered.
VCENTER	The child widget is vertically centered.
TOP	The children are stack on the top.
BOTTOM	The children are stack on the bottom.
LEFT	The children are stack on the left.
RIGHT	The children are stack on the right.
TOPCENTER	The children are stack on the top and horizontally centered.
BOTTOMCENTER	The children are stack on the bottom and horizontally centered.
LEFTCENTER	The children are stack on the left and vertically centered.
RIGHTCENTER	The children are stack on the right and vertically centered.
TOPLEFT	The children are stack on the top and left aligned.
BOTTOMLEFT	The children are stack on the bottom and left aligned.
BOTTOMRIGHT	The children are stack on the bottom and right aligned.
TOPRIGHT	The children are stack on the top and right aligned.
LEFTTOP	The children are stack on the left then on the top.
LEFTBOTTOM	The children are stack on the left then on the bottom.
RIGHTBOTTOM	The children are stack on the right then on the bottom.
RIGHTTOP	The children are stack on the right then on the top.
CORNERTOPLEFT
CORNERTOPRIGHT
CORNERBOTTOMLEFT
CORNERBOTTOMRIGHT

enum Type

Widget type.

Enum Values	Documentation
WIDGET	transparent widget
PANEL	rectangular widget with only a background
BOX	rectangular widget with a border and a background
LINE	A horizontal or vertical line
FRAME	A box with a title
BUTTON	A push button
TOGGLEBUTTON	A two states button
TEXT	A single line of text
TEXTEDIT	An editable single line of text.
SCROLLBAR	A scroll bar. with min, max & pos
TREEVIEW	Tree of Widget.
IMAGE	2D Image

Constructor & Destructor Documentation

Widget ( Type = WIDGET )

Creates a widget of a particular type

~Widget ( )

overridedefault

Member Function Documentation

std::shared_ptr<T> add	(	std::shared_ptr< T >	child,
		const AlignmentType	alignment,
		const std::string &	resource = `""`,
		const bool	overlap = `false`
	)

inline

Adds a child widget. Children widgets will be destroyed on parent destruction.

Parameters

child	: child widget to add
alignment	placement
resource	: resource string
overlap	: overlap widget on top of other widgets

void allowingFocus ( bool allow = true )

protected

void enable ( bool isEnabled = true )

Enables or disables widget reactions to input events

virtual void eventCreate ( )

virtual

virtual void eventDestroy ( )

virtual

virtual void eventDisable ( )

virtual

virtual void eventEnable ( )

virtual

virtual void eventGotFocus ( )

virtual

virtual void eventHide ( )

virtual

virtual bool eventKeyDown ( Key key )

virtual

Reimplemented in lysa::ui::TextEdit::eventKeyDown()

virtual bool eventKeyUp ( Key key )

virtual

virtual void eventLostFocus ( )

virtual

virtual bool eventMouseDown	(	MouseButton	button,
		float	x,
		float	y
	)

virtual

Reimplemented in lysa::ui::CheckWidget::eventMouseDown(), lysa::ui::ToggleButton::eventMouseDown()

virtual bool eventMouseMove	(	uint32	,
		float	x,
		float	y
	)

virtual

virtual bool eventMouseUp	(	MouseButton	button,
		float	x,
		float	y
	)

virtual

Reimplemented in lysa::ui::Button::eventMouseUp()

virtual void eventMove	(	float	x,
		float	y
	)

virtual

virtual void eventResize ( )

virtual

Reimplemented in lysa::ui::ValueSelect::eventResize()

virtual void eventShow ( )

virtual

AlignmentType getAlignment ( ) const

Returns the current widget placement

Rect getChildrenRect ( ) const

std::shared_ptr<Font> getFont ( ) const

Returns the current font of the widget

float getFontScale ( ) const

uint32 getGroupIndex ( ) const

Return the user defined group index

float getHBorder ( ) const

float getHeight ( ) const

inline

Returns the height of the widget, in pixels

float getPadding ( ) const

Returns current children padding (space between children)

Widget* getParent ( ) const

inline

Returns the parent widget, or nullptr

const Rect& getRect ( ) const

Returns the size & the position of the widget

float getTransparency ( ) const

inline

Return the transparency alpha value

Type getType ( ) const

Returns the type of the widget

void* getUserData ( ) const

Returns the user data

float getVBorder ( ) const

float getWidth ( ) const

inline

Returns the width of the widget, in pixels

bool isDrawBackground ( ) const

Returns false if the background is transparent

bool isEnabled ( ) const

Returns true is the widget is reactive to user action (mouse & keyboard)

bool isFocused ( ) const

Returns true if the widget has keyboard focus

bool isFreezed ( ) const

bool isOverlapping ( ) const

inline

bool isPointed ( ) const

bool isPushed ( ) const

bool isRedrawOnMouseEvent ( ) const

bool isVisible ( ) const

Returns true if the widget is visible

void refresh ( ) const

Force a refresh of the entire widget

virtual void remove ( const std::shared_ptr< Widget > & child )

virtual

Removes a child widget

virtual void removeAll ( )

virtual

Removes all children's widgets recursively

void resizeChildren ( )

void setAlignment ( AlignmentType alignment )

Sets the widget placement. Calling this method involve redrawing the parent widget & resizing all the children widgets

void setDrawBackground ( bool drawBackground )

Sets to false make the widget background transparent

Widget* setFocus ( bool = true )

void setFont ( const std::shared_ptr< Font > & font )

Sets the current font of the widget

virtual void setFontScale ( float fontScale )

virtual

Reimplemented in lysa::ui::Text::setFontScale()

void setFreezed ( const bool f )

inline

void setGroupIndex ( int32 index )

Set the user defined group index

void setHBorder ( float size )

void setPadding ( float padding )

Changes children padding (space between children)

void setPos	(	float	x,
		float	y
	)

Moves the widget to a particular position.

void setPushed ( const bool p )

inline

void setRect ( const Rect & rect )

Changes the size & position of the widget

void setRect	(	float	x,
		float	y,
		float	width,
		float	height
	)

Changes the size & position of the widget

void setResource ( std::shared_ptr< Resource > )

Changes widget resources. Use with caution !

virtual void setSize	(	float	width,
		float	height
	)

virtual

Resizes the widget

void setTransparency ( float alpha )

Changes the transparency alpha value

void setUserData ( void * data )

set user data

void setVBorder ( float size )

void show ( bool show = true )

Shows or hides the widget

Friends And Related Function Documentation

friend class Window

friend

Member Data Documentation

AlignmentType alignment {NONE}

protected

bool allowChildren {true}

protected

bool allowFocus {false}

protected

std::list<std::shared_ptr<Widget> > children

protected

Rect defaultRect

protected

bool drawBackground {true}

protected

bool focused {false}

protected

float fontScale {0.0f}

protected

float hborder {0}

protected

bool mouseMoveOnFocus {false}

protected

bool moveChildrenOnPush {false}

protected

bool overlap {false}

protected

float padding {0}

protected

Widget* parent {nullptr}

protected

Rect rect

protected

bool redrawOnMouseEvent {false}

protected

bool redrawOnMouseMove {false}

protected

std::shared_ptr<Resource> resource

protected

void* style {nullptr}

protected

float transparency {1.0f}

protected

const Type type

protected

float vborder {0}

protected

Window* window {nullptr}

protected

Detailed Description

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
