DirectionalLight Class Reference

Detailed Description

Directional light from a distance, as from the Sun.

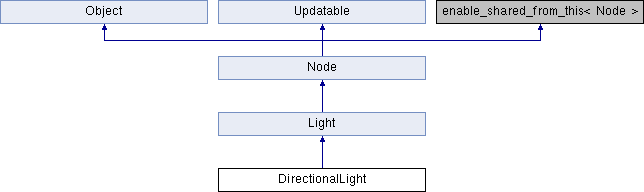

+ Inheritance diagram for DirectionalLight:

Public Member Functions

 DirectionalLight (const float4 &color={1.0f, 1.0f, 1.0f, 1.0f}, const std::string &nodeName=TypeNames[DIRECTIONAL_LIGHT])

 ~DirectionalLight () override = default

void setShadowMapCascadesCount (uint32 cascadesCount)

auto getShadowMapCascadesCount () const

auto getCascadeSplitLambda () const

void setCascadeSplitLambda (const float cascadeSplitLambda)

LightData getLightData () const override

void setProperty (const std::string &property, const std::string &value) override

- Public Member Functions inherited from Light
 ~Light () override = default

const auto & getColorAndIntensity () const

void setColorAndIntensity (const float4 &colorAndIntensity)

auto getCastShadows () const

void setCastShadows (bool castShadows)

auto getLightType () const

auto getShadowMapSize () const

void setShadowMapSize (const int32 shadowMapSize)

auto getShadowTransparencyScissors () const

auto setShadowTransparencyScissors (const float scissors)

auto getShadowTransparencyColorScissors () const

auto setShadowTransparencyColorScissors (const float scissors)

void setProperty (const std::string &property, const std::string &value) override

- Public Member Functions inherited from Node
 Node (const Node &node)

 Node (const std::string &name=TypeNames[NODE], Type type=NODE)

auto getId () const

virtual void onReady ()

virtual void onEnterScene ()

virtual void onExitScene ()

virtual void onProcess (const float alpha)

virtual void onPhysicsProcess (const float delta)

virtual bool onInput (InputEvent &inputEvent)

void setTransformLocal (const float4x4 &transform)

const float4x4 & getTransformGlobal () const

const float4x4 & getTransform () const

virtual void setPosition (const float3 &position)

virtual void setPosition (const float x, const float y, const float z)

float3 getPosition () const

void translate (const float3 &localOffset)

void translate (float x, float y, float z)

virtual void setPositionGlobal (const float3 &position)

virtual void setPositionGlobal (const float x, const float y, const float z)

float3 getPositionGlobal () const

void rotateX (float angle)

void rotateY (float angle)

void rotateZ (float angle)

quaternion getRotation () const

quaternion getRotationGlobal () const

float3 getRotationEulerAngles () const

float3 getRotationEulerAnglesGlobal () const

virtual void scale (float scale)

void setRotation (const quaternion &quat)

void setRotationGlobal (const quaternion &quat)

void setRotationX (float angle)

void setRotationY (float angle)

void setRotationZ (float angle)

float getRotationX () const

float getRotationY () const

float getRotationZ () const

float3 getScale () const

float3 getScaleGlobal () const

auto * getParent () const

bool addChild (std::shared_ptr< Node > child, bool async=false)

bool removeChild (const std::shared_ptr< Node > &child, bool async=false)

void removeAllChildren (bool async=false)

bool haveChild (const std::shared_ptr< Node > &child, bool recursive) const

void lookAt (const float3 &target)

template<typename T = Node>
std::shared_ptr< T > getChild (const std::string &name) const

template<typename T = Node>
std::shared_ptr< T > getChildByPath (const std::string &path) const

template<typename T = Node>
std::shared_ptr< T > findFirstChild (const std::string &name) const

template<typename T >
std::shared_ptr< T > findFirstChild (const bool recursive=true) const

template<typename T >
std::list< std::shared_ptr< T > > findAllChildren (const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > > findAllChildren (const std::string &name, const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > > findAllChildrenByGroup (const std::string &groupName, const bool recursive=true) const

const std::list< std::shared_ptr< Node > > & getChildren () const

const std::list< std::string > & getGroups () const

void addToGroup (const std::string &group)

void removeFromGroup (const std::string &group)

bool isVisible () const

virtual void setVisible (bool visible=true)

auto isInGroup (const std::string &group) const

void setProcessMode (const ProcessMode mode)

bool isProcessed () const

auto getType () const

auto getViewport () const

const std::string & getName () const

std::string getPath () const

void printTree (int tab=0) const

std::shared_ptr< Node > duplicate (bool recursiveFilter=false) const

float3 toGlobal (const float3 &local) const

float3 toLocal (const float3 &global) const

float3 getRightVector () const

float3 getLeftVector () const

float3 getFrontVector () const

float3 getBackVector () const

float3 getUpVector () const

float3 getDownVector () const

void setName (const std::string &nodeName)

template<typename T >
std::shared_ptr< Tween > createPropertyTween (typename PropertyTween< T >::Setter set, const T initial, const T final, float duration, const TransitionType ttype=TransitionType::LINEAR, const Tween::Callback &callback=nullptr)

void killTween (const std::shared_ptr< Tween > &tween)

auto getSharedPtr ()

 ~Node () override = default

- Public Member Functions inherited from Object
void connect (const Signal::signal &name, const Signal::Handler &handler)

void connect (const Signal::signal &name, const std::function< void ()> &handler)

void emit (const Signal::signal &name, void *params=nullptr)

virtual std::string toString () const

 Object () = default

virtual ~Object () = default

- Public Member Functions inherited from Updatable
auto isUpdated () const

void decrementUpdates ()

void setUpdated ()

void setMaxUpdates (const uint32 maxUpdates)


Static Public Attributes

static constexpr uint32 MAX_SHADOW_MAP_CASCADES {3}

- Static Public Attributes inherited from Light
static constexpr auto MAX_LIGHTS {100}

- Static Public Attributes inherited from Node
static constexpr auto TypeNames


Protected Member Functions

std::shared_ptr< Node > duplicateInstance () const override

- Protected Member Functions inherited from Light
 Light (const std::string &nodeName=TypeNames[LIGHT], Type type=LIGHT)

 Light (const float4 &color, const std::string &nodeName=TypeNames[LIGHT], Type type=LIGHT)

- Protected Member Functions inherited from Node
virtual void updateGlobalTransform ()

virtual void ready ()

virtual void physicsProcess (float delta)

virtual void process (float alpha)

virtual void enterScene ()

virtual void exitScene ()

virtual void attachToViewport (Viewport *viewport)

virtual void detachFromViewport ()

virtual void pause ()

virtual void resume ()


Additional Inherited Members

- Public Types inherited from Light
enum  LightType { LIGHT_UNKNOWN = -1, LIGHT_DIRECTIONAL = 0, LIGHT_OMNI = 1, LIGHT_SPOT = 2 }

- Public Types inherited from Node
enum  Type {
  ANIMATION_PLAYER, CAMERA, CHARACTER, COLLISION_AREA,
  COLLISION_OBJECT, DIRECTIONAL_LIGHT, ENVIRONMENT, KINEMATIC_BODY,
  LIGHT, MESH_INSTANCE, NODE, OMNI_LIGHT,
  PHYSICS_BODY, RAYCAST, RIGID_BODY, SKYBOX,
  SPOT_LIGHT, STATIC_BODY, VIEWPORT
}
 Node type. More...

- Public Attributes inherited from Updatable
uint32 pendingUpdates {0}

uint32 maxUpdates {0}

- Protected Attributes inherited from Light
uint32 shadowMapSize {512}

- Protected Attributes inherited from Node
float4x4 localTransform {}

float4x4 globalTransform {}


Constructor & Destructor Documentation

DirectionalLight ( const float4 &  color = {1.0f, 1.0f, 1.0f, 1.0f},
const std::string &  nodeName = TypeNames[DIRECTIONAL_LIGHT]
)

Create a DirectionalLight

Parameters
colorRGB color and intensity of the light
nodeNameNode name
~DirectionalLight ( )
overridedefault

Member Function Documentation

std::shared_ptr<Node> duplicateInstance ( ) const
overrideprotectedvirtual

Reimplemented from lysa::Node::duplicateInstance()

auto getCascadeSplitLambda ( ) const
inline
LightData getLightData ( ) const
overridevirtual

Reimplemented from lysa::Light::getLightData()

auto getShadowMapCascadesCount ( ) const
inline

Returns the number of cascades for the shadow map

void setCascadeSplitLambda ( const float  cascadeSplitLambda)
inline

Lambda constant for split depth calculation: the closer to 1.0 the smaller the firsts splits

void setProperty ( const std::string &  property,
const std::string &  value
)
overridevirtual

Sets a property by its name and value. Currently, not all properties in all node classes are supported.

Reimplemented from lysa::Node::setProperty()

void setShadowMapCascadesCount ( uint32  cascadesCount)

Sets the number of cascades for the shadow map (between 2 and ShadowMapFrameBuffer::CASCADED_SHADOWMAP_MAX_LAYERS).
must be called before adding the light to the scene since this value is used when instancing the shadow map renderer for this light.

Member Data Documentation

constexpr uint32 MAX_SHADOW_MAP_CASCADES {3}
staticconstexpr
