Detailed Description

Base class for different kinds of light nodes

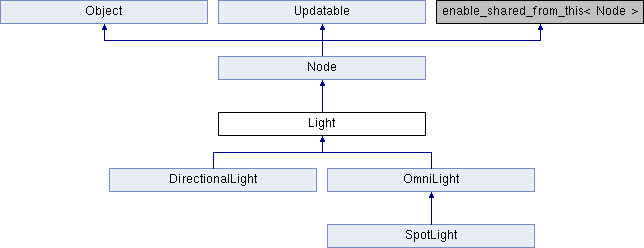

Inheritance diagram for Light:

Public Types
enum	LightType { LIGHT_UNKNOWN = -1, LIGHT_DIRECTIONAL = 0, LIGHT_OMNI = 1, LIGHT_SPOT = 2 }

Public Types inherited from Node
enum	Type { ANIMATION_PLAYER, CAMERA, CHARACTER, COLLISION_AREA, COLLISION_OBJECT, DIRECTIONAL_LIGHT, ENVIRONMENT, KINEMATIC_BODY, LIGHT, MESH_INSTANCE, NODE, OMNI_LIGHT, PHYSICS_BODY, RAYCAST, RIGID_BODY, SKYBOX, SPOT_LIGHT, STATIC_BODY, VIEWPORT }
	Node type. More...

Public Member Functions
	~Light () override = default

const auto &	getColorAndIntensity () const

void	setColorAndIntensity (const float4 &colorAndIntensity)

auto	getCastShadows () const

void	setCastShadows (bool castShadows)

auto	getLightType () const

auto	getShadowMapSize () const

void	setShadowMapSize (const int32 shadowMapSize)

auto	getShadowTransparencyScissors () const

auto	setShadowTransparencyScissors (const float scissors)

auto	getShadowTransparencyColorScissors () const

auto	setShadowTransparencyColorScissors (const float scissors)

void	setProperty (const std::string &property, const std::string &value) override

virtual LightData	getLightData () const

Public Member Functions inherited from Node
	Node (const Node &node)

	Node (const std::string &name=TypeNames[NODE], Type type=NODE)

auto	getId () const

virtual void	onReady ()

virtual void	onEnterScene ()

virtual void	onExitScene ()

virtual void	onProcess (const float alpha)

virtual void	onPhysicsProcess (const float delta)

virtual bool	onInput (InputEvent &inputEvent)

void	setTransformLocal (const float4x4 &transform)

const float4x4 &	getTransformGlobal () const

const float4x4 &	getTransform () const

virtual void	setPosition (const float3 &position)

virtual void	setPosition (const float x, const float y, const float z)

float3	getPosition () const

void	translate (const float3 &localOffset)

void	translate (float x, float y, float z)

virtual void	setPositionGlobal (const float3 &position)

virtual void	setPositionGlobal (const float x, const float y, const float z)

float3	getPositionGlobal () const

void	rotateX (float angle)

void	rotateY (float angle)

void	rotateZ (float angle)

quaternion	getRotation () const

quaternion	getRotationGlobal () const

float3	getRotationEulerAngles () const

float3	getRotationEulerAnglesGlobal () const

virtual void	scale (float scale)

void	setRotation (const quaternion &quat)

void	setRotationGlobal (const quaternion &quat)

void	setRotationX (float angle)

void	setRotationY (float angle)

void	setRotationZ (float angle)

float	getRotationX () const

float	getRotationY () const

float	getRotationZ () const

float3	getScale () const

float3	getScaleGlobal () const

auto *	getParent () const

bool	addChild (std::shared_ptr< Node > child, bool async=false)

bool	removeChild (const std::shared_ptr< Node > &child, bool async=false)

void	removeAllChildren (bool async=false)

bool	haveChild (const std::shared_ptr< Node > &child, bool recursive) const

void	lookAt (const float3 &target)

template<typename T = Node>
std::shared_ptr< T >	getChild (const std::string &name) const

template<typename T = Node>
std::shared_ptr< T >	getChildByPath (const std::string &path) const

template<typename T = Node>
std::shared_ptr< T >	findFirstChild (const std::string &name) const

template<typename T >
std::shared_ptr< T >	findFirstChild (const bool recursive=true) const

template<typename T >
std::list< std::shared_ptr< T > >	findAllChildren (const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildren (const std::string &name, const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildrenByGroup (const std::string &groupName, const bool recursive=true) const

const std::list< std::shared_ptr< Node > > &	getChildren () const

const std::list< std::string > &	getGroups () const

void	addToGroup (const std::string &group)

void	removeFromGroup (const std::string &group)

bool	isVisible () const

virtual void	setVisible (bool visible=true)

auto	isInGroup (const std::string &group) const

void	setProcessMode (const ProcessMode mode)

bool	isProcessed () const

auto	getType () const

auto	getViewport () const

const std::string &	getName () const

std::string	getPath () const

void	printTree (int tab=0) const

std::shared_ptr< Node >	duplicate (bool recursiveFilter=false) const

float3	toGlobal (const float3 &local) const

float3	toLocal (const float3 &global) const

float3	getRightVector () const

float3	getLeftVector () const

float3	getFrontVector () const

float3	getBackVector () const

float3	getUpVector () const

float3	getDownVector () const

void	setName (const std::string &nodeName)

template<typename T >
std::shared_ptr< Tween >	createPropertyTween (typename PropertyTween< T >::Setter set, const T initial, const T final, float duration, const TransitionType ttype=TransitionType::LINEAR, const Tween::Callback &callback=nullptr)

void	killTween (const std::shared_ptr< Tween > &tween)

auto	getSharedPtr ()

	~Node () override = default

Public Member Functions inherited from Object
void	connect (const Signal::signal &name, const Signal::Handler &handler)

void	connect (const Signal::signal &name, const std::function< void ()> &handler)

void	emit (const Signal::signal &name, void *params=nullptr)

virtual std::string	toString () const

	Object () = default

virtual	~Object () = default

Public Member Functions inherited from Updatable
auto	isUpdated () const

void	decrementUpdates ()

void	setUpdated ()

void	setMaxUpdates (const uint32 maxUpdates)

Static Public Attributes
static constexpr auto	MAX_LIGHTS {100}

Static Public Attributes inherited from Node
static constexpr auto	TypeNames

Protected Member Functions
	Light (const std::string &nodeName=TypeNames[LIGHT], Type type=LIGHT)

	Light (const float4 &color, const std::string &nodeName=TypeNames[LIGHT], Type type=LIGHT)

Protected Member Functions inherited from Node
virtual std::shared_ptr< Node >	duplicateInstance () const

virtual void	updateGlobalTransform ()

virtual void	ready ()

virtual void	physicsProcess (float delta)

virtual void	process (float alpha)

virtual void	enterScene ()

virtual void	exitScene ()

virtual void	attachToViewport (Viewport *viewport)

virtual void	detachFromViewport ()

virtual void	pause ()

virtual void	resume ()

Protected Attributes
uint32	shadowMapSize {512}

Protected Attributes inherited from Node
float4x4	localTransform {}

float4x4	globalTransform {}

Additional Inherited Members
Public Attributes inherited from Updatable
uint32	pendingUpdates {0}

uint32	maxUpdates {0}

Member Enumeration Documentation

enum LightType

Light type, mainly used by the fragment shader

Enum Values	Documentation
LIGHT_UNKNOWN
LIGHT_DIRECTIONAL
LIGHT_OMNI
LIGHT_SPOT

Constructor & Destructor Documentation

~Light ( )

overridedefault

Light	(	const std::string &	nodeName = `TypeNames[LIGHT]`,
		Type	type = `LIGHT`
	)

protected

Light	(	const float4 &	color,
		const std::string &	nodeName = `TypeNames[LIGHT]`,
		Type	type = `LIGHT`
	)

protected

Member Function Documentation

auto getCastShadows ( ) const

inline

If true, the light will cast real-time shadows.
This has a significant performance cost. Only enable shadow rendering when it makes a noticeable difference in the scene's appearance.

const auto& getColorAndIntensity ( ) const

inline

Returns the RGB color and the intensity factor

virtual LightData getLightData ( ) const

virtual

Reimplemented in lysa::SpotLight::getLightData(), lysa::OmniLight::getLightData(), lysa::DirectionalLight::getLightData()

auto getLightType ( ) const

inline

Returns the light type

auto getShadowMapSize ( ) const

inline

auto getShadowTransparencyColorScissors ( ) const

inline

auto getShadowTransparencyScissors ( ) const

inline

void setCastShadows ( bool castShadows )

Sets to true to makes the light cast real-time shadow.
This has a significant performance cost. Only enable shadow rendering when it makes a noticeable difference in the scene's appearance.
Changing this parameter have no effect after adding the light to the scene (to avoid destroying shadow map renderers during frame rendering), you have to remove the light from the scene, change the setting, then add the light to the scene (adding and removing nodes from the scene if a deferred process).

void setColorAndIntensity ( const float4 & colorAndIntensity )

inline

Sets the RGB color and the intensity factor

void setProperty	(	const std::string &	property,
		const std::string &	value
	)

overridevirtual

Sets a property by its name and value. Currently, not all properties in all node classes are supported.

Reimplemented from lysa::Node::setProperty()

Reimplemented in lysa::SpotLight::setProperty(), lysa::OmniLight::setProperty()

void setShadowMapSize ( const int32 shadowMapSize )

inline

auto setShadowTransparencyColorScissors ( const float scissors )

inline

auto setShadowTransparencyScissors ( const float scissors )

inline

Member Data Documentation

constexpr auto MAX_LIGHTS {100}

staticconstexpr

uint32 shadowMapSize {512}

protected
