OmniLight Class Reference

Detailed Description

Omnidirectional light, such as a light bulb or a candle

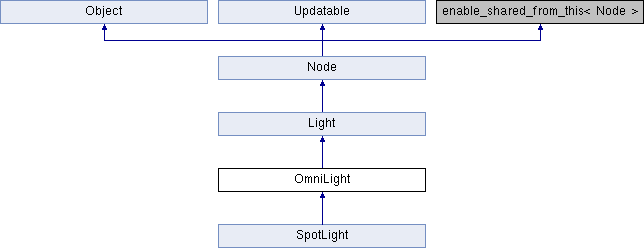

+ Inheritance diagram for OmniLight:

Public Member Functions

 OmniLight (const std::string &name=TypeNames[OMNI_LIGHT], Type type=OMNI_LIGHT)

 OmniLight (float range, const float4 &color={1.0f, 1.0f, 1.0f, 1.0f}, const std::string &nodeName=TypeNames[OMNI_LIGHT], Type type=OMNI_LIGHT)

 ~OmniLight () override = default

auto getRange () const

void setRange (float range)

auto getNearClipDistance () const

void setProperty (const std::string &property, const std::string &value) override

LightData getLightData () const override

- Public Member Functions inherited from Light
 ~Light () override = default

const auto & getColorAndIntensity () const

void setColorAndIntensity (const float4 &colorAndIntensity)

auto getCastShadows () const

void setCastShadows (bool castShadows)

auto getLightType () const

auto getShadowMapSize () const

void setShadowMapSize (const int32 shadowMapSize)

auto getShadowTransparencyScissors () const

auto setShadowTransparencyScissors (const float scissors)

auto getShadowTransparencyColorScissors () const

auto setShadowTransparencyColorScissors (const float scissors)

- Public Member Functions inherited from Node
 Node (const Node &node)

 Node (const std::string &name=TypeNames[NODE], Type type=NODE)

auto getId () const

virtual void onReady ()

virtual void onEnterScene ()

virtual void onExitScene ()

virtual void onProcess (const float alpha)

virtual void onPhysicsProcess (const float delta)

virtual bool onInput (InputEvent &inputEvent)

void setTransformLocal (const float4x4 &transform)

const float4x4 & getTransformGlobal () const

const float4x4 & getTransform () const

virtual void setPosition (const float3 &position)

virtual void setPosition (const float x, const float y, const float z)

float3 getPosition () const

void translate (const float3 &localOffset)

void translate (float x, float y, float z)

virtual void setPositionGlobal (const float3 &position)

virtual void setPositionGlobal (const float x, const float y, const float z)

float3 getPositionGlobal () const

void rotateX (float angle)

void rotateY (float angle)

void rotateZ (float angle)

quaternion getRotation () const

quaternion getRotationGlobal () const

float3 getRotationEulerAngles () const

float3 getRotationEulerAnglesGlobal () const

virtual void scale (float scale)

void setRotation (const quaternion &quat)

void setRotationGlobal (const quaternion &quat)

void setRotationX (float angle)

void setRotationY (float angle)

void setRotationZ (float angle)

float getRotationX () const

float getRotationY () const

float getRotationZ () const

float3 getScale () const

float3 getScaleGlobal () const

auto * getParent () const

bool addChild (std::shared_ptr< Node > child, bool async=false)

bool removeChild (const std::shared_ptr< Node > &child, bool async=false)

void removeAllChildren (bool async=false)

bool haveChild (const std::shared_ptr< Node > &child, bool recursive) const

void lookAt (const float3 &target)

template<typename T = Node>
std::shared_ptr< T > getChild (const std::string &name) const

template<typename T = Node>
std::shared_ptr< T > getChildByPath (const std::string &path) const

template<typename T = Node>
std::shared_ptr< T > findFirstChild (const std::string &name) const

template<typename T >
std::shared_ptr< T > findFirstChild (const bool recursive=true) const

template<typename T >
std::list< std::shared_ptr< T > > findAllChildren (const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > > findAllChildren (const std::string &name, const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > > findAllChildrenByGroup (const std::string &groupName, const bool recursive=true) const

const std::list< std::shared_ptr< Node > > & getChildren () const

const std::list< std::string > & getGroups () const

void addToGroup (const std::string &group)

void removeFromGroup (const std::string &group)

bool isVisible () const

virtual void setVisible (bool visible=true)

auto isInGroup (const std::string &group) const

void setProcessMode (const ProcessMode mode)

bool isProcessed () const

auto getType () const

auto getViewport () const

const std::string & getName () const

std::string getPath () const

void printTree (int tab=0) const

std::shared_ptr< Node > duplicate (bool recursiveFilter=false) const

float3 toGlobal (const float3 &local) const

float3 toLocal (const float3 &global) const

float3 getRightVector () const

float3 getLeftVector () const

float3 getFrontVector () const

float3 getBackVector () const

float3 getUpVector () const

float3 getDownVector () const

void setName (const std::string &nodeName)

template<typename T >
std::shared_ptr< Tween > createPropertyTween (typename PropertyTween< T >::Setter set, const T initial, const T final, float duration, const TransitionType ttype=TransitionType::LINEAR, const Tween::Callback &callback=nullptr)

void killTween (const std::shared_ptr< Tween > &tween)

auto getSharedPtr ()

 ~Node () override = default

- Public Member Functions inherited from Object
void connect (const Signal::signal &name, const Signal::Handler &handler)

void connect (const Signal::signal &name, const std::function< void ()> &handler)

void emit (const Signal::signal &name, void *params=nullptr)

virtual std::string toString () const

 Object () = default

virtual ~Object () = default

- Public Member Functions inherited from Updatable
auto isUpdated () const

void decrementUpdates ()

void setUpdated ()

void setMaxUpdates (const uint32 maxUpdates)


Protected Member Functions

std::shared_ptr< Node > duplicateInstance () const override

- Protected Member Functions inherited from Light
 Light (const std::string &nodeName=TypeNames[LIGHT], Type type=LIGHT)

 Light (const float4 &color, const std::string &nodeName=TypeNames[LIGHT], Type type=LIGHT)

- Protected Member Functions inherited from Node
virtual void updateGlobalTransform ()

virtual void ready ()

virtual void physicsProcess (float delta)

virtual void process (float alpha)

virtual void enterScene ()

virtual void exitScene ()

virtual void attachToViewport (Viewport *viewport)

virtual void detachFromViewport ()

virtual void pause ()

virtual void resume ()


Additional Inherited Members

- Public Types inherited from Light
enum  LightType { LIGHT_UNKNOWN = -1, LIGHT_DIRECTIONAL = 0, LIGHT_OMNI = 1, LIGHT_SPOT = 2 }

- Public Types inherited from Node
enum  Type {
  ANIMATION_PLAYER, CAMERA, CHARACTER, COLLISION_AREA,
  COLLISION_OBJECT, DIRECTIONAL_LIGHT, ENVIRONMENT, KINEMATIC_BODY,
  LIGHT, MESH_INSTANCE, NODE, OMNI_LIGHT,
  PHYSICS_BODY, RAYCAST, RIGID_BODY, SKYBOX,
  SPOT_LIGHT, STATIC_BODY, VIEWPORT
}
 Node type. More...

- Public Attributes inherited from Updatable
uint32 pendingUpdates {0}

uint32 maxUpdates {0}

- Static Public Attributes inherited from Light
static constexpr auto MAX_LIGHTS {100}

- Static Public Attributes inherited from Node
static constexpr auto TypeNames

- Protected Attributes inherited from Light
uint32 shadowMapSize {512}

- Protected Attributes inherited from Node
float4x4 localTransform {}

float4x4 globalTransform {}


Constructor & Destructor Documentation

OmniLight ( const std::string &  name = TypeNames[OMNI_LIGHT],
Type  type = OMNI_LIGHT
)

Creates an OmniLight with default parameters

OmniLight ( float  range,
const float4 &  color = {1.0f, 1.0f, 1.0f, 1.0f},
const std::string &  nodeName = TypeNames[OMNI_LIGHT],
Type  type = OMNI_LIGHT
)

Create an OmniLight.

Parameters
rangeThe light's radius
colorthe RGB color and intensity
nodeNameNode name
typeOmni or Spot light
~OmniLight ( )
overridedefault

Member Function Documentation

std::shared_ptr<Node> duplicateInstance ( ) const
overrideprotectedvirtual

Reimplemented from lysa::Node::duplicateInstance()

Reimplemented in lysa::SpotLight::duplicateInstance()

LightData getLightData ( ) const
overridevirtual

Reimplemented from lysa::Light::getLightData()

Reimplemented in lysa::SpotLight::getLightData()

auto getNearClipDistance ( ) const
inline

Returns the light near clipping distance for the shadows (default 0.1m)

auto getRange ( ) const
inline

Returns the light range (default 10m)

void setProperty ( const std::string &  property,
const std::string &  value
)
overridevirtual

Sets a property by its name and value. Currently, not all properties in all node classes are supported.

Reimplemented from lysa::Light::setProperty()

Reimplemented in lysa::SpotLight::setProperty()

void setRange ( float  range)

Sets the light range
