Detailed Description

Base class for all 3D nodes

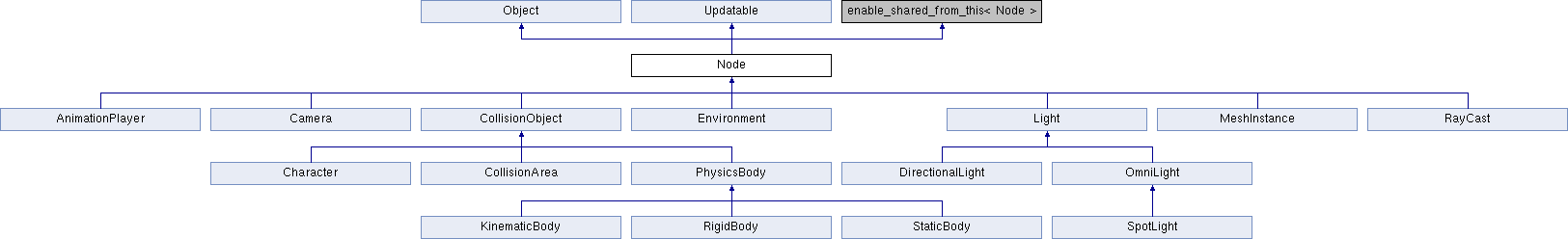

Inheritance diagram for Node:

Public Types
enum	Type { ANIMATION_PLAYER, CAMERA, CHARACTER, COLLISION_AREA, COLLISION_OBJECT, DIRECTIONAL_LIGHT, ENVIRONMENT, KINEMATIC_BODY, LIGHT, MESH_INSTANCE, NODE, OMNI_LIGHT, PHYSICS_BODY, RAYCAST, RIGID_BODY, SKYBOX, SPOT_LIGHT, STATIC_BODY, VIEWPORT }
	Node type. More...

Public Member Functions
	Node (const Node &node)

	Node (const std::string &name=TypeNames[NODE], Type type=NODE)

auto	getId () const

virtual void	onReady ()

virtual void	onEnterScene ()

virtual void	onExitScene ()

virtual void	onProcess (const float alpha)

virtual void	onPhysicsProcess (const float delta)

virtual bool	onInput (InputEvent &inputEvent)

void	setTransformLocal (const float4x4 &transform)

const float4x4 &	getTransformGlobal () const

const float4x4 &	getTransform () const

virtual void	setPosition (const float3 &position)

virtual void	setPosition (const float x, const float y, const float z)

float3	getPosition () const

void	translate (const float3 &localOffset)

void	translate (float x, float y, float z)

virtual void	setPositionGlobal (const float3 &position)

virtual void	setPositionGlobal (const float x, const float y, const float z)

float3	getPositionGlobal () const

void	rotateX (float angle)

void	rotateY (float angle)

void	rotateZ (float angle)

quaternion	getRotation () const

quaternion	getRotationGlobal () const

float3	getRotationEulerAngles () const

float3	getRotationEulerAnglesGlobal () const

virtual void	scale (float scale)

void	setRotation (const quaternion &quat)

void	setRotationGlobal (const quaternion &quat)

void	setRotationX (float angle)

void	setRotationY (float angle)

void	setRotationZ (float angle)

float	getRotationX () const

float	getRotationY () const

float	getRotationZ () const

float3	getScale () const

float3	getScaleGlobal () const

auto *	getParent () const

bool	addChild (std::shared_ptr< Node > child, bool async=false)

bool	removeChild (const std::shared_ptr< Node > &child, bool async=false)

void	removeAllChildren (bool async=false)

bool	haveChild (const std::shared_ptr< Node > &child, bool recursive) const

void	lookAt (const float3 &target)

template<typename T = Node>
std::shared_ptr< T >	getChild (const std::string &name) const

template<typename T = Node>
std::shared_ptr< T >	getChildByPath (const std::string &path) const

template<typename T = Node>
std::shared_ptr< T >	findFirstChild (const std::string &name) const

template<typename T >
std::shared_ptr< T >	findFirstChild (const bool recursive=true) const

template<typename T >
std::list< std::shared_ptr< T > >	findAllChildren (const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildren (const std::string &name, const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildrenByGroup (const std::string &groupName, const bool recursive=true) const

const std::list< std::shared_ptr< Node > > &	getChildren () const

const std::list< std::string > &	getGroups () const

void	addToGroup (const std::string &group)

void	removeFromGroup (const std::string &group)

bool	isVisible () const

virtual void	setVisible (bool visible=true)

auto	isInGroup (const std::string &group) const

void	setProcessMode (const ProcessMode mode)

bool	isProcessed () const

auto	getType () const

auto	getViewport () const

const std::string &	getName () const

std::string	getPath () const

virtual void	setProperty (const std::string &property, const std::string &value)

void	printTree (int tab=0) const

std::shared_ptr< Node >	duplicate (bool recursiveFilter=false) const

float3	toGlobal (const float3 &local) const

float3	toLocal (const float3 &global) const

float3	getRightVector () const

float3	getLeftVector () const

float3	getFrontVector () const

float3	getBackVector () const

float3	getUpVector () const

float3	getDownVector () const

void	setName (const std::string &nodeName)

template<typename T >
std::shared_ptr< Tween >	createPropertyTween (typename PropertyTween< T >::Setter set, const T initial, const T final, float duration, const TransitionType ttype=TransitionType::LINEAR, const Tween::Callback &callback=nullptr)

void	killTween (const std::shared_ptr< Tween > &tween)

auto	getSharedPtr ()

	~Node () override = default

Public Member Functions inherited from Object
void	connect (const Signal::signal &name, const Signal::Handler &handler)

void	connect (const Signal::signal &name, const std::function< void ()> &handler)

void	emit (const Signal::signal &name, void *params=nullptr)

virtual std::string	toString () const

	Object () = default

virtual	~Object () = default

Public Member Functions inherited from Updatable
auto	isUpdated () const

void	decrementUpdates ()

void	setUpdated ()

void	setMaxUpdates (const uint32 maxUpdates)

Static Public Attributes
static constexpr auto	TypeNames

Protected Member Functions
virtual std::shared_ptr< Node >	duplicateInstance () const

virtual void	updateGlobalTransform ()

virtual void	ready ()

virtual void	physicsProcess (float delta)

virtual void	process (float alpha)

virtual void	enterScene ()

virtual void	exitScene ()

virtual void	attachToViewport (Viewport *viewport)

virtual void	detachFromViewport ()

virtual void	pause ()

virtual void	resume ()

Protected Attributes
float4x4	localTransform {}

float4x4	globalTransform {}

Additional Inherited Members
Public Attributes inherited from Updatable
uint32	pendingUpdates {0}

uint32	maxUpdates {0}

Member Enumeration Documentation

enum Type

Node type.

Enum Values	Documentation
ANIMATION_PLAYER
CAMERA
CHARACTER
COLLISION_AREA
COLLISION_OBJECT
DIRECTIONAL_LIGHT
ENVIRONMENT
KINEMATIC_BODY
LIGHT
MESH_INSTANCE
NODE
OMNI_LIGHT
PHYSICS_BODY
RAYCAST
RIGID_BODY
SKYBOX
SPOT_LIGHT
STATIC_BODY
VIEWPORT

Constructor & Destructor Documentation

Node ( const Node & node )

Creates a node by copying the transforms, process mode, type and name

Node	(	const std::string &	name = `TypeNames[NODE]`,
		Type	type = `NODE`
	)

Creates a new node at (0.0, 0.0, 0.0) without a parent

~Node ( )

overridedefault

Member Function Documentation

bool addChild	(	std::shared_ptr< Node >	child,
		bool	async = `false`
	)

Adds a child node.
Nodes can have any number of children, but a child can have only one parent.
The node will be added to the scene at the start of the next frame.

Parameters

child	the node to add
async	if `true` and the node have children all the nodes will be added in batch mode. Be careful to set the visibility of the nodes to `false`or they will appear slowly in the scene.

void addToGroup ( const std::string & group )

inline

Adds the node to the group. Groups can be helpful to organize a subset of nodes, for example "enemies" or "stairs".

virtual void attachToViewport ( Viewport * viewport )

protectedvirtual

Reimplemented in lysa::Character::attachToViewport(), lysa::CollisionObject::attachToViewport(), lysa::CollisionArea::attachToViewport(), lysa::PhysicsBody::attachToViewport()

std::shared_ptr<Tween> createPropertyTween	(	typename PropertyTween< T >::Setter	set,
		const T	initial,
		const T	final,
		float	duration,
		const TransitionType	ttype = `TransitionType::LINEAR`,
		const Tween::Callback &	callback = `nullptr`
	)

inline

Creates a Tween to tweens a property of the node between an initial value and final value in a span of time equal to duration, in seconds.

virtual void detachFromViewport ( )

protectedvirtual

std::shared_ptr<Node> duplicate ( bool recursiveFilter = false ) const

Duplicates a node. Warning : not implemented on all node types, check documentation for the node type before using it.

virtual std::shared_ptr<Node> duplicateInstance ( ) const

protectedvirtual

Reimplemented in lysa::AnimationPlayer::duplicateInstance(), lysa::RigidBody::duplicateInstance(), lysa::Camera::duplicateInstance(), lysa::MeshInstance::duplicateInstance(), lysa::SpotLight::duplicateInstance(), lysa::OmniLight::duplicateInstance(), lysa::DirectionalLight::duplicateInstance(), lysa::CollisionArea::duplicateInstance(), lysa::Environment::duplicateInstance(), lysa::StaticBody::duplicateInstance(), lysa::KinematicBody::duplicateInstance()

virtual void enterScene ( )

protectedvirtual

Reimplemented in lysa::Character::enterScene(), lysa::AnimationPlayer::enterScene(), lysa::CollisionObject::enterScene(), lysa::RigidBody::enterScene()

virtual void exitScene ( )

protectedvirtual

Reimplemented in lysa::CollisionObject::exitScene()

std::list<std::shared_ptr<T> > findAllChildren ( const bool recursive = true ) const

inline

Finds all children by type

std::list<std::shared_ptr<T> > findAllChildren	(	const std::string &	name,
		const bool	recursive = `true`
	)		const

inline

Finds all children by name

std::list<std::shared_ptr<T> > findAllChildrenByGroup	(	const std::string &	groupName,
		const bool	recursive = `true`
	)		const

inline

Finds all children by group

std::shared_ptr<T> findFirstChild ( const bool recursive = true ) const

inline

Finds the first child by is type.

std::shared_ptr<T> findFirstChild ( const std::string & name ) const

inline

Finds the first child by is name.

float3 getBackVector ( ) const

inline

Returns the normalized back vector

std::shared_ptr<T> getChild ( const std::string & name ) const

inline

Returns the child node by is name. Not recursive

std::shared_ptr<T> getChildByPath ( const std::string & path ) const

inline

Returns the child node by its relative path (does not start with '/')

const std::list<std::shared_ptr<Node> >& getChildren ( ) const

inline

Returns the immutable list of children nodes

float3 getDownVector ( ) const

inline

Returns the normalized down vector

float3 getFrontVector ( ) const

inline

Returns the normalized front vector

const std::list<std::string>& getGroups ( ) const

inline

Returns a list of group names that the node has been added to.

auto getId ( ) const

inline

Returns the unique id of the node

float3 getLeftVector ( ) const

inline

Returns the normalized left vector

const std::string& getName ( ) const

inline

Returns the node name

auto* getParent ( ) const

inline

Returns the node's parent in the scene tree

std::string getPath ( ) const

Returns the node path

float3 getPosition ( ) const

inline

Returns the local space position (relative to parent)

float3 getPositionGlobal ( ) const

inline

Returns the world space position

float3 getRightVector ( ) const

inline

Returns the normalized right vector

quaternion getRotation ( ) const

Returns the rotation of the local transformation

float3 getRotationEulerAngles ( ) const

Returns the rotation of the local transformation, in euler angles in radians

float3 getRotationEulerAnglesGlobal ( ) const

Returns the rotation of the world transformation, in euler angles in radians

quaternion getRotationGlobal ( ) const

Returns the rotation of the world transformation

float getRotationX ( ) const

Returns the X axis rotation of the local transformation

float getRotationY ( ) const

Returns the Y axis rotation of the local transformation

float getRotationZ ( ) const

Returns the Z axis rotation of the local transformation

float3 getScale ( ) const

Returns the scale part of the local transformation.

float3 getScaleGlobal ( ) const

Returns the scale part of the global transformation.

auto getSharedPtr ( )

inline

const float4x4& getTransform ( ) const

inline

Returns the local space transformation matrix

const float4x4& getTransformGlobal ( ) const

inline

Returns the world space transformation matrix

auto getType ( ) const

inline

Returns the node type

float3 getUpVector ( ) const

inline

Returns the normalized up vector

auto getViewport ( ) const

inline

Returns the attached rendering window or nullptr if the node is not attached to a window.

bool haveChild	(	const std::shared_ptr< Node > &	child,
		bool	recursive
	)		const

Returns true if the node have this child

auto isInGroup ( const std::string & group ) const

inline

Returns true if this node has been added to the given group

bool isProcessed ( ) const

Returns true if the node is processed and receive input callbacks

bool isVisible ( ) const

inline

Returns the visibility of the node.

void killTween ( const std::shared_ptr< Tween > & tween )

Removes the tween from the processing list

void lookAt ( const float3 & target )

virtual void onEnterScene ( )

inlinevirtual

Called when a node is added to the scene

virtual void onExitScene ( )

inlinevirtual

Called when a node is removed from the scene

virtual bool onInput ( InputEvent & inputEvent )

inlinevirtual

Called on a keyboard, mouse or gamepad event

virtual void onPhysicsProcess ( const float delta )

inlinevirtual

Called just after the physics system has been updated (can be called multiple times if we have free time between frames)

virtual void onProcess ( const float alpha )

inlinevirtual

Called each frame after the physics have been updated and just before drawing the frame

virtual void onReady ( )

inlinevirtual

Called when a node is ready to initialize, before being added to the scene

virtual void pause ( )

protectedvirtual

Reimplemented in lysa::CollisionObject::pause()

virtual void physicsProcess ( float delta )

protectedvirtual

Reimplemented in lysa::Character::physicsProcess(), lysa::RayCast::physicsProcess()

void printTree ( int tab = 0 ) const

Recursively prints the node tree in the log system

virtual void process ( float alpha )

protectedvirtual

Reimplemented in lysa::Character::process(), lysa::AnimationPlayer::process(), lysa::CollisionObject::process(), lysa::StaticBody::process()

virtual void ready ( )

protectedvirtual

void removeAllChildren ( bool async = false )

Removes all children nodes. The nodes, along with their children can be deleted depending on their reference counters. The nodes will be removed from the scene at the start of the next frame.

Parameters

async if true and the nodes will be removed in batch mode. Be careful to set the visibility of the nodes to false or they will disappear slowly from the scene.

bool removeChild	(	const std::shared_ptr< Node > &	child,
		bool	async = `false`
	)

Removes a child node. The node, along with its children can be deleted depending on their reference counter.
Use the iterator version in a for-each loop.
The node will be removed from the scene at the start of the next frame.

Parameters

child	the node to remove
async	if `true` and the node have children all the nodes will be removed in batch mode. Be careful to set the visibility of the nodes to `false` or they will disappear slowly from the scene.

void removeFromGroup ( const std::string & group )

inline

Removes the node from the given group. Does nothing if the node is not in the group

virtual void resume ( )

protectedvirtual

Reimplemented in lysa::Character::resume(), lysa::CollisionObject::resume()

void rotateX ( float angle )

Rotates the local transformation

Interpolate the local transformation

Rotates the local transformation around the X axis by angle in radians.

void rotateY ( float angle )

Rotates the local transformation around the Y axis by angle in radians.

void rotateZ ( float angle )

Rotates the local transformation around the Z axis by angle in radians.

virtual void scale ( float scale )

virtual

Rotates the local transformation

Scale the local transformation

Reimplemented in lysa::CollisionObject::scale()

void setName ( const std::string & nodeName )

inline

Sets the node name (purely informative)

virtual void setPosition	(	const float	x,
		const float	y,
		const float	z
	)

inlinevirtual

Sets the local space position (relative to parent)

virtual void setPosition ( const float3 & position )

virtual

Sets the local space position (relative to parent)

virtual void setPositionGlobal	(	const float	x,
		const float	y,
		const float	z
	)

inlinevirtual

Sets the world space position

virtual void setPositionGlobal ( const float3 & position )

virtual

Sets the world space position

void setProcessMode ( const ProcessMode mode )

inline

Changes the node's processing behavior.

virtual void setProperty	(	const std::string &	property,
		const std::string &	value
	)

virtual

Sets a property by its name and value. Currently, not all properties in all node classes are supported.

Reimplemented in lysa::Light::setProperty(), lysa::RigidBody::setProperty(), lysa::CollisionObject::setProperty(), lysa::MeshInstance::setProperty(), lysa::SpotLight::setProperty(), lysa::DirectionalLight::setProperty(), lysa::OmniLight::setProperty(), lysa::CollisionArea::setProperty(), lysa::Environment::setProperty(), lysa::PhysicsBody::setProperty()

void setRotation ( const quaternion & quat )

Sets the local transformation

void setRotationGlobal ( const quaternion & quat )

Sets the world transformation

void setRotationX ( float angle )

Sets the local transformation

Sets the X axis rotation of the local transformation by angle in radians.

void setRotationY ( float angle )

Sets the Y axis rotation of the local transformation by angle in radians.

void setRotationZ ( float angle )

Sets the Z axis rotation of the local transformation by angle in radians.

void setTransformLocal ( const float4x4 & transform )

Returns the local space transformation matrix

virtual void setVisible ( bool visible = true )

virtual

Changes the visibility of the node.
The node stays in the scene tree and the data in VRAM.

Reimplemented in lysa::Character::setVisible(), lysa::CollisionObject::setVisible()

float3 toGlobal ( const float3 & local ) const

Transforms a local vector from this node's local space to world space.

float3 toLocal ( const float3 & global ) const

Transforms a world space vector to this node's local space.

void translate ( const float3 & localOffset )

Changes the node's position by the given offset vector in local space.

void translate	(	float	x,
		float	y,
		float	z
	)

Changes the node's position by the given offset vector in local space.

virtual void updateGlobalTransform ( )

protectedvirtual

Reimplemented in lysa::CollisionObject::updateGlobalTransform()

Friends And Related Function Documentation

friend class Loader

friend

Viewport

friend

friend class Window

friend

Member Data Documentation

float4x4 globalTransform {}

protected

float4x4 localTransform {}

protected

constexpr auto TypeNames

staticconstexpr

Initial value:

std::array {
            "AnimationPlayer",
            "Camera",
            "Character",
            "CollisionArea",
            "CollisionObject",
            "DirectionalLight",
            "Environment",
            "KinematicBody",
            "Light",
            "MeshInstance",
            "Node",
            "OmniLight",
            "PhysicsBody",
            "RayCast",
            "RigidBody",
            "Skybox",
            "SpotLight",
            "StaticBody",
            "Viewport"
        }

Detailed Description

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
