Detailed Description

A 3D physics body specialized for characters moved by code

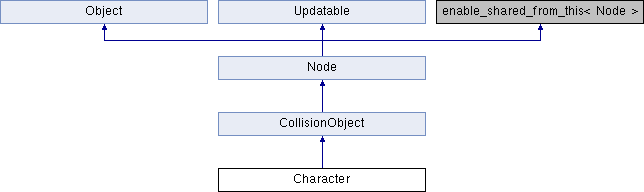

Inheritance diagram for Character:

Public Member Functions
	Character (float height, float radius, collision_layer layer, const std::string &name=TypeNames[CHARACTER])

void	setShape (float height, float radius)

bool	isOnGround () const

bool	isGround (const CollisionObject &object) const

float3	getGroundVelocity () const

Node *	getGround () const

const auto &	getUp () const

void	setUp (const float3 &vector)

std::list< Collision >	getCollisions () const

void	setVelocity (const float3 &velocity)

void	setMaxSlopeAngle (float angle)

float	getHeight () const

float	getRadius () const

void	setVisible (bool visible=true) override

void	setCollisionLayer (collision_layer layer) override

float3	getVelocity () const

	~Character () override = default

Public Member Functions inherited from CollisionObject
auto	getCollisionLayer () const

bool	wereInContact (const CollisionObject *obj) const

void	setProperty (const std::string &property, const std::string &value) override

void	setVisible (bool visible=true) override

void	scale (float scale) override

	CollisionObject (const CollisionObject &)

	~CollisionObject () override

Public Member Functions inherited from Node
	Node (const Node &node)

	Node (const std::string &name=TypeNames[NODE], Type type=NODE)

auto	getId () const

virtual void	onReady ()

virtual void	onEnterScene ()

virtual void	onExitScene ()

virtual void	onProcess (const float alpha)

virtual void	onPhysicsProcess (const float delta)

virtual bool	onInput (InputEvent &inputEvent)

void	setTransformLocal (const float4x4 &transform)

const float4x4 &	getTransformGlobal () const

const float4x4 &	getTransform () const

virtual void	setPosition (const float3 &position)

virtual void	setPosition (const float x, const float y, const float z)

float3	getPosition () const

void	translate (const float3 &localOffset)

void	translate (float x, float y, float z)

virtual void	setPositionGlobal (const float3 &position)

virtual void	setPositionGlobal (const float x, const float y, const float z)

float3	getPositionGlobal () const

void	rotateX (float angle)

void	rotateY (float angle)

void	rotateZ (float angle)

quaternion	getRotation () const

quaternion	getRotationGlobal () const

float3	getRotationEulerAngles () const

float3	getRotationEulerAnglesGlobal () const

void	setRotation (const quaternion &quat)

void	setRotationGlobal (const quaternion &quat)

void	setRotationX (float angle)

void	setRotationY (float angle)

void	setRotationZ (float angle)

float	getRotationX () const

float	getRotationY () const

float	getRotationZ () const

float3	getScale () const

float3	getScaleGlobal () const

auto *	getParent () const

bool	addChild (std::shared_ptr< Node > child, bool async=false)

bool	removeChild (const std::shared_ptr< Node > &child, bool async=false)

void	removeAllChildren (bool async=false)

bool	haveChild (const std::shared_ptr< Node > &child, bool recursive) const

void	lookAt (const float3 &target)

template<typename T = Node>
std::shared_ptr< T >	getChild (const std::string &name) const

template<typename T = Node>
std::shared_ptr< T >	getChildByPath (const std::string &path) const

template<typename T = Node>
std::shared_ptr< T >	findFirstChild (const std::string &name) const

template<typename T >
std::shared_ptr< T >	findFirstChild (const bool recursive=true) const

template<typename T >
std::list< std::shared_ptr< T > >	findAllChildren (const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildren (const std::string &name, const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildrenByGroup (const std::string &groupName, const bool recursive=true) const

const std::list< std::shared_ptr< Node > > &	getChildren () const

const std::list< std::string > &	getGroups () const

void	addToGroup (const std::string &group)

void	removeFromGroup (const std::string &group)

bool	isVisible () const

auto	isInGroup (const std::string &group) const

void	setProcessMode (const ProcessMode mode)

bool	isProcessed () const

auto	getType () const

auto	getViewport () const

const std::string &	getName () const

std::string	getPath () const

void	printTree (int tab=0) const

std::shared_ptr< Node >	duplicate (bool recursiveFilter=false) const

float3	toGlobal (const float3 &local) const

float3	toLocal (const float3 &global) const

float3	getRightVector () const

float3	getLeftVector () const

float3	getFrontVector () const

float3	getBackVector () const

float3	getUpVector () const

float3	getDownVector () const

void	setName (const std::string &nodeName)

template<typename T >
std::shared_ptr< Tween >	createPropertyTween (typename PropertyTween< T >::Setter set, const T initial, const T final, float duration, const TransitionType ttype=TransitionType::LINEAR, const Tween::Callback &callback=nullptr)

void	killTween (const std::shared_ptr< Tween > &tween)

auto	getSharedPtr ()

	~Node () override = default

Public Member Functions inherited from Object
void	connect (const Signal::signal &name, const Signal::Handler &handler)

void	connect (const Signal::signal &name, const std::function< void ()> &handler)

void	emit (const Signal::signal &name, void *params=nullptr)

virtual std::string	toString () const

	Object () = default

virtual	~Object () = default

Public Member Functions inherited from Updatable
auto	isUpdated () const

void	decrementUpdates ()

void	setUpdated ()

void	setMaxUpdates (const uint32 maxUpdates)

Static Public Attributes
static const Signal::signal	on_collision = "on_character_collision"

Static Public Attributes inherited from CollisionObject
static const Signal::signal	on_collision_starts = "on_collision_starts"

static const Signal::signal	on_collision_persists = "on_collision_persists"

Static Public Attributes inherited from Node
static constexpr auto	TypeNames

Protected Member Functions
void	setPositionAndRotation () override

void	physicsProcess (float delta) override

void	process (float alpha) override

void	attachToViewport (Viewport *viewport) override

void	enterScene () override

void	resume () override

Protected Member Functions inherited from CollisionObject
	CollisionObject (const std::shared_ptr< Shape > &shape, collision_layer layer, const std::string &name=TypeNames[COLLISION_OBJECT], Type type=COLLISION_OBJECT)

	CollisionObject (collision_layer layer, const std::string &name=TypeNames[COLLISION_OBJECT], Type type=COLLISION_OBJECT)

void	updateGlobalTransform () override

void	releaseResources ()

void	process (float alpha) override

void	attachToViewport (Viewport *viewport) override

void	enterScene () override

void	exitScene () override

void	pause () override

void	resume () override

Protected Member Functions inherited from Node
virtual std::shared_ptr< Node >	duplicateInstance () const

virtual void	ready ()

virtual void	detachFromViewport ()

Protected Attributes
float	height

float	radius

float3	upVector {AXIS_UP}

float	yDelta {0}

Protected Attributes inherited from CollisionObject
bool	updating {false}

collision_layer	collisionLayer

std::shared_ptr< Shape >	shape {nullptr}

Protected Attributes inherited from Node
float4x4	localTransform {}

float4x4	globalTransform {}

Additional Inherited Members
Public Types inherited from Node
enum	Type { ANIMATION_PLAYER, CAMERA, CHARACTER, COLLISION_AREA, COLLISION_OBJECT, DIRECTIONAL_LIGHT, ENVIRONMENT, KINEMATIC_BODY, LIGHT, MESH_INSTANCE, NODE, OMNI_LIGHT, PHYSICS_BODY, RAYCAST, RIGID_BODY, SKYBOX, SPOT_LIGHT, STATIC_BODY, VIEWPORT }
	Node type. More...

Public Attributes inherited from Updatable
uint32	pendingUpdates {0}

uint32	maxUpdates {0}

Constructor & Destructor Documentation

Character	(	float	height,
		float	radius,
		collision_layer	layer,
		const std::string &	name = `TypeNames[CHARACTER]`
	)

explicit

Creates a Character with a given collision shape, belonging to the layer layers and detecting collisions with bodies having a layer in the mask value.

Parameters

height	Height of the collision shape capsule shape
radius	Radius of the collision shape capsule
layer	Collision layer
name	Name of the node

~Character ( )

overridedefault

Member Function Documentation

void attachToViewport ( Viewport * viewport )

overrideprotectedvirtual

Reimplemented from lysa::Node::attachToViewport()

void enterScene ( )

overrideprotectedvirtual

Reimplemented from lysa::Node::enterScene()

std::list<Collision> getCollisions ( ) const

Returns the list of the currently colliding bodies

Node* getGround ( ) const

Returns the ground node, if any

float3 getGroundVelocity ( ) const

Returns the velocity in the world space of the ground.

float getHeight ( ) const

inline

Returns the height of the capsule collision shape

float getRadius ( ) const

inline

Returns the radius of the capsule collision shape

const auto& getUp ( ) const

inline

Returns the UP axis for this Character

float3 getVelocity ( ) const

Returns the linear velocity of the character

bool isGround ( const CollisionObject & object ) const

Returns true if object is the ground

bool isOnGround ( ) const

Returns true if the Character is on a ground

void physicsProcess ( float delta )

overrideprotectedvirtual

Reimplemented from lysa::Node::physicsProcess()

void process ( float alpha )

overrideprotectedvirtual

Reimplemented from lysa::Node::process()

void resume ( )

overrideprotectedvirtual

Reimplemented from lysa::Node::resume()

void setCollisionLayer ( collision_layer layer )

overridevirtual

Sets the current collision layer

Reimplemented from lysa::CollisionObject::setCollisionLayer()

void setMaxSlopeAngle ( float angle )

Set the maximum angle of slope that character can still walk on (degrres)

void setPositionAndRotation ( )

overrideprotectedvirtual

Reimplemented from lysa::CollisionObject::setPositionAndRotation()

void setShape	(	float	height,
		float	radius
	)

Sets a new capsule shape, recreates the virtualCharacter in the physic system

void setUp ( const float3 & vector )

Sets the UP axis for this Character

void setVelocity ( const float3 & velocity )

Moves the virtualCharacter using this velocity

void setVisible ( bool visible = true )

overridevirtual

Sets the current visibility of the character.

Reimplemented from lysa::Node::setVisible()

Member Data Documentation

float height

protected

const Signal::signal on_collision = "on_character_collision"

inlinestatic

Signal called whenever the character collides with a body and reports the first contact point in a CollisionObject::Collision<br>

float radius

protected

float3 upVector {AXIS_UP}

protected

float yDelta {0}

protected
