Detailed Description

Base class for 3D physics objects.

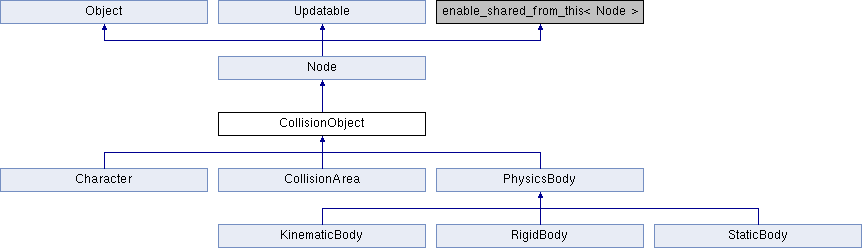

Inheritance diagram for CollisionObject:

Classes
struct	Collision

Public Member Functions
auto	getCollisionLayer () const

virtual void	setCollisionLayer (uint32 layer)

bool	wereInContact (const CollisionObject *obj) const

void	setProperty (const std::string &property, const std::string &value) override

void	setVisible (bool visible=true) override

void	scale (float scale) override

	CollisionObject (const CollisionObject &)

	~CollisionObject () override

Public Member Functions inherited from Node
	Node (const Node &node)

	Node (const std::string &name=TypeNames[NODE], Type type=NODE)

auto	getId () const

virtual void	onReady ()

virtual void	onEnterScene ()

virtual void	onExitScene ()

virtual void	onProcess (const float alpha)

virtual void	onPhysicsProcess (const float delta)

virtual bool	onInput (InputEvent &inputEvent)

void	setTransformLocal (const float4x4 &transform)

const float4x4 &	getTransformGlobal () const

const float4x4 &	getTransform () const

virtual void	setPosition (const float3 &position)

virtual void	setPosition (const float x, const float y, const float z)

float3	getPosition () const

void	translate (const float3 &localOffset)

void	translate (float x, float y, float z)

virtual void	setPositionGlobal (const float3 &position)

virtual void	setPositionGlobal (const float x, const float y, const float z)

float3	getPositionGlobal () const

void	rotateX (float angle)

void	rotateY (float angle)

void	rotateZ (float angle)

quaternion	getRotation () const

quaternion	getRotationGlobal () const

float3	getRotationEulerAngles () const

float3	getRotationEulerAnglesGlobal () const

void	setRotation (const quaternion &quat)

void	setRotationGlobal (const quaternion &quat)

void	setRotationX (float angle)

void	setRotationY (float angle)

void	setRotationZ (float angle)

float	getRotationX () const

float	getRotationY () const

float	getRotationZ () const

float3	getScale () const

float3	getScaleGlobal () const

auto *	getParent () const

bool	addChild (std::shared_ptr< Node > child, bool async=false)

bool	removeChild (const std::shared_ptr< Node > &child, bool async=false)

void	removeAllChildren (bool async=false)

bool	haveChild (const std::shared_ptr< Node > &child, bool recursive) const

void	lookAt (const float3 &target)

template<typename T = Node>
std::shared_ptr< T >	getChild (const std::string &name) const

template<typename T = Node>
std::shared_ptr< T >	getChildByPath (const std::string &path) const

template<typename T = Node>
std::shared_ptr< T >	findFirstChild (const std::string &name) const

template<typename T >
std::shared_ptr< T >	findFirstChild (const bool recursive=true) const

template<typename T >
std::list< std::shared_ptr< T > >	findAllChildren (const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildren (const std::string &name, const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > >	findAllChildrenByGroup (const std::string &groupName, const bool recursive=true) const

const std::list< std::shared_ptr< Node > > &	getChildren () const

const std::list< std::string > &	getGroups () const

void	addToGroup (const std::string &group)

void	removeFromGroup (const std::string &group)

bool	isVisible () const

auto	isInGroup (const std::string &group) const

void	setProcessMode (const ProcessMode mode)

bool	isProcessed () const

auto	getType () const

auto	getViewport () const

const std::string &	getName () const

std::string	getPath () const

void	printTree (int tab=0) const

std::shared_ptr< Node >	duplicate (bool recursiveFilter=false) const

float3	toGlobal (const float3 &local) const

float3	toLocal (const float3 &global) const

float3	getRightVector () const

float3	getLeftVector () const

float3	getFrontVector () const

float3	getBackVector () const

float3	getUpVector () const

float3	getDownVector () const

void	setName (const std::string &nodeName)

template<typename T >
std::shared_ptr< Tween >	createPropertyTween (typename PropertyTween< T >::Setter set, const T initial, const T final, float duration, const TransitionType ttype=TransitionType::LINEAR, const Tween::Callback &callback=nullptr)

void	killTween (const std::shared_ptr< Tween > &tween)

auto	getSharedPtr ()

	~Node () override = default

Public Member Functions inherited from Object
void	connect (const Signal::signal &name, const Signal::Handler &handler)

void	connect (const Signal::signal &name, const std::function< void ()> &handler)

void	emit (const Signal::signal &name, void *params=nullptr)

virtual std::string	toString () const

	Object () = default

virtual	~Object () = default

Public Member Functions inherited from Updatable
auto	isUpdated () const

void	decrementUpdates ()

void	setUpdated ()

void	setMaxUpdates (const uint32 maxUpdates)

Static Public Attributes
static const Signal::signal	on_collision_starts = "on_collision_starts"

static const Signal::signal	on_collision_persists = "on_collision_persists"

Static Public Attributes inherited from Node
static constexpr auto	TypeNames

Protected Member Functions
	CollisionObject (const std::shared_ptr< Shape > &shape, collision_layer layer, const std::string &name=TypeNames[COLLISION_OBJECT], Type type=COLLISION_OBJECT)

	CollisionObject (collision_layer layer, const std::string &name=TypeNames[COLLISION_OBJECT], Type type=COLLISION_OBJECT)

virtual void	setPositionAndRotation ()

void	updateGlobalTransform () override

void	releaseResources ()

void	process (float alpha) override

void	attachToViewport (Viewport *viewport) override

void	enterScene () override

void	exitScene () override

void	pause () override

void	resume () override

Protected Member Functions inherited from Node
virtual std::shared_ptr< Node >	duplicateInstance () const

virtual void	ready ()

virtual void	physicsProcess (float delta)

virtual void	detachFromViewport ()

Protected Attributes
bool	updating {false}

collision_layer	collisionLayer

std::shared_ptr< Shape >	shape {nullptr}

Protected Attributes inherited from Node
float4x4	localTransform {}

float4x4	globalTransform {}

Additional Inherited Members
Public Types inherited from Node
enum	Type { ANIMATION_PLAYER, CAMERA, CHARACTER, COLLISION_AREA, COLLISION_OBJECT, DIRECTIONAL_LIGHT, ENVIRONMENT, KINEMATIC_BODY, LIGHT, MESH_INSTANCE, NODE, OMNI_LIGHT, PHYSICS_BODY, RAYCAST, RIGID_BODY, SKYBOX, SPOT_LIGHT, STATIC_BODY, VIEWPORT }
	Node type. More...

Public Attributes inherited from Updatable
uint32	pendingUpdates {0}

uint32	maxUpdates {0}

Constructor & Destructor Documentation

CollisionObject ( const CollisionObject & )

~CollisionObject ( )

override

CollisionObject	(	const std::shared_ptr< Shape > &	shape,
		collision_layer	layer,
		const std::string &	name = `TypeNames[COLLISION_OBJECT]`,
		Type	type = `COLLISION_OBJECT`
	)

protected

CollisionObject	(	collision_layer	layer,
		const std::string &	name = `TypeNames[COLLISION_OBJECT]`,
		Type	type = `COLLISION_OBJECT`
	)

protected

Member Function Documentation

void attachToViewport ( Viewport * viewport )

overrideprotectedvirtual

Reimplemented from lysa::Node::attachToViewport()

Reimplemented in lysa::PhysicsBody::attachToViewport()

void enterScene ( )

overrideprotectedvirtual

Reimplemented from lysa::Node::enterScene()

Reimplemented in lysa::RigidBody::enterScene()

void exitScene ( )

overrideprotectedvirtual

Reimplemented from lysa::Node::exitScene()

auto getCollisionLayer ( ) const

inline

The physics layers this CollisionObject is in.

void pause ( )

overrideprotectedvirtual

Reimplemented from lysa::Node::pause()

void process ( float alpha )

overrideprotectedvirtual

Reimplemented from lysa::Node::process()

Reimplemented in lysa::StaticBody::process()

void releaseResources ( )

protected

void resume ( )

overrideprotectedvirtual

Reimplemented from lysa::Node::resume()

void scale ( float scale )

overridevirtual

Rotates the local transformation

Scale the local transformation

Reimplemented from lysa::Node::scale()

virtual void setCollisionLayer ( uint32 layer )

virtual

Sets the collision layer

Reimplemented in lysa::Character::setCollisionLayer()

virtual void setPositionAndRotation ( )

protectedvirtual

Reimplemented in lysa::Character::setPositionAndRotation()

void setProperty	(	const std::string &	property,
		const std::string &	value
	)

overridevirtual

Sets a property by its name and value. Currently, not all properties in all node classes are supported.

Reimplemented from lysa::Node::setProperty()

Reimplemented in lysa::RigidBody::setProperty(), lysa::PhysicsBody::setProperty()

void setVisible ( bool visible = true )

overridevirtual

Changes the visibility of the node.
The node stays in the scene tree and the data in VRAM.

Reimplemented from lysa::Node::setVisible()

void updateGlobalTransform ( )

overrideprotectedvirtual

Reimplemented from lysa::Node::updateGlobalTransform()

bool wereInContact ( const CollisionObject * obj ) const

Returns true if obj were in contact with the object during the last simulation step

Member Data Documentation

collision_layer collisionLayer

protected

const Signal::signal on_collision_persists = "on_collision_persists"

inlinestatic

Signal called whenever a contact is detected that was also detected last update and reports the first contact point in a CollisionObject::Collision<br> Never called for characters since on_collision_added is called during the whole contact.

const Signal::signal on_collision_starts = "on_collision_starts"

inlinestatic

Signal called whenever a new contact point is detected and reports the first contact point in a CollisionObject::Collision<br> For characters, called whenever the character collides with a body.

std::shared_ptr<Shape> shape {nullptr}

protected

bool updating {false}

protected
