MeshInstance Class Reference

Detailed Description

Node that holds a Mesh.

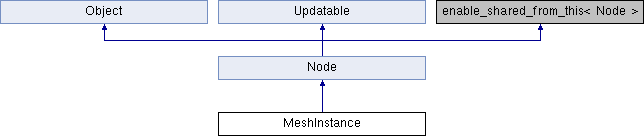

+ Inheritance diagram for MeshInstance:

Public Member Functions

 MeshInstance (const std::shared_ptr< Mesh > &mesh, const std::string &name=TypeNames[MESH_INSTANCE])

const auto & getMesh () const

const auto & getAABB () const

MeshInstanceData getModelData () const

const auto & getSurfaceOverrideMaterials () const

void setSurfaceOverrideMaterial (uint32 surfaceIndex, const std::shared_ptr< Material > &material)

std::shared_ptr< Material > getSurfaceOverrideMaterial (uint32 surfaceIndex)

void setSurfaceMaterial (uint32 surfaceIndex, const std::shared_ptr< Material > &material)

const std::shared_ptr< Material > & getSurfaceMaterial (uint32 surfaceIndex) const

void setCastShadows (bool castShadows)

auto getCastShadows () const

- Public Member Functions inherited from Node
 Node (const Node &node)

 Node (const std::string &name=TypeNames[NODE], Type type=NODE)

auto getId () const

virtual void onReady ()

virtual void onEnterScene ()

virtual void onExitScene ()

virtual void onProcess (const float alpha)

virtual void onPhysicsProcess (const float delta)

virtual bool onInput (InputEvent &inputEvent)

void setTransformLocal (const float4x4 &transform)

const float4x4 & getTransformGlobal () const

const float4x4 & getTransform () const

virtual void setPosition (const float3 &position)

virtual void setPosition (const float x, const float y, const float z)

float3 getPosition () const

void translate (const float3 &localOffset)

void translate (float x, float y, float z)

virtual void setPositionGlobal (const float3 &position)

virtual void setPositionGlobal (const float x, const float y, const float z)

float3 getPositionGlobal () const

void rotateX (float angle)

void rotateY (float angle)

void rotateZ (float angle)

quaternion getRotation () const

quaternion getRotationGlobal () const

float3 getRotationEulerAngles () const

float3 getRotationEulerAnglesGlobal () const

virtual void scale (float scale)

void setRotation (const quaternion &quat)

void setRotationGlobal (const quaternion &quat)

void setRotationX (float angle)

void setRotationY (float angle)

void setRotationZ (float angle)

float getRotationX () const

float getRotationY () const

float getRotationZ () const

float3 getScale () const

float3 getScaleGlobal () const

auto * getParent () const

bool addChild (std::shared_ptr< Node > child, bool async=false)

bool removeChild (const std::shared_ptr< Node > &child, bool async=false)

void removeAllChildren (bool async=false)

bool haveChild (const std::shared_ptr< Node > &child, bool recursive) const

void lookAt (const float3 &target)

template<typename T = Node>
std::shared_ptr< T > getChild (const std::string &name) const

template<typename T = Node>
std::shared_ptr< T > getChildByPath (const std::string &path) const

template<typename T = Node>
std::shared_ptr< T > findFirstChild (const std::string &name) const

template<typename T >
std::shared_ptr< T > findFirstChild (const bool recursive=true) const

template<typename T >
std::list< std::shared_ptr< T > > findAllChildren (const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > > findAllChildren (const std::string &name, const bool recursive=true) const

template<typename T = Node>
std::list< std::shared_ptr< T > > findAllChildrenByGroup (const std::string &groupName, const bool recursive=true) const

const std::list< std::shared_ptr< Node > > & getChildren () const

const std::list< std::string > & getGroups () const

void addToGroup (const std::string &group)

void removeFromGroup (const std::string &group)

bool isVisible () const

virtual void setVisible (bool visible=true)

auto isInGroup (const std::string &group) const

void setProcessMode (const ProcessMode mode)

bool isProcessed () const

auto getType () const

auto getViewport () const

const std::string & getName () const

std::string getPath () const

void printTree (int tab=0) const

std::shared_ptr< Node > duplicate (bool recursiveFilter=false) const

float3 toGlobal (const float3 &local) const

float3 toLocal (const float3 &global) const

float3 getRightVector () const

float3 getLeftVector () const

float3 getFrontVector () const

float3 getBackVector () const

float3 getUpVector () const

float3 getDownVector () const

void setName (const std::string &nodeName)

template<typename T >
std::shared_ptr< Tween > createPropertyTween (typename PropertyTween< T >::Setter set, const T initial, const T final, float duration, const TransitionType ttype=TransitionType::LINEAR, const Tween::Callback &callback=nullptr)

void killTween (const std::shared_ptr< Tween > &tween)

auto getSharedPtr ()

 ~Node () override = default

- Public Member Functions inherited from Object
void connect (const Signal::signal &name, const Signal::Handler &handler)

void connect (const Signal::signal &name, const std::function< void ()> &handler)

void emit (const Signal::signal &name, void *params=nullptr)

virtual std::string toString () const

 Object () = default

virtual ~Object () = default

- Public Member Functions inherited from Updatable
auto isUpdated () const

void decrementUpdates ()

void setUpdated ()

void setMaxUpdates (const uint32 maxUpdates)


Protected Member Functions

std::shared_ptr< Node > duplicateInstance () const override

void setProperty (const std::string &property, const std::string &value) override

- Protected Member Functions inherited from Node
virtual void ready ()

virtual void physicsProcess (float delta)

virtual void process (float alpha)

virtual void enterScene ()

virtual void exitScene ()

virtual void attachToViewport (Viewport *viewport)

virtual void detachFromViewport ()

virtual void pause ()

virtual void resume ()


Friends

bool operator< (const MeshInstance &a, const MeshInstance &b)


Additional Inherited Members

- Public Types inherited from Node
enum  Type {
  ANIMATION_PLAYER, CAMERA, CHARACTER, COLLISION_AREA,
  COLLISION_OBJECT, DIRECTIONAL_LIGHT, ENVIRONMENT, KINEMATIC_BODY,
  LIGHT, MESH_INSTANCE, NODE, OMNI_LIGHT,
  PHYSICS_BODY, RAYCAST, RIGID_BODY, SKYBOX,
  SPOT_LIGHT, STATIC_BODY, VIEWPORT
}
 Node type. More...

- Public Attributes inherited from Updatable
uint32 pendingUpdates {0}

uint32 maxUpdates {0}

- Static Public Attributes inherited from Node
static constexpr auto TypeNames

- Protected Attributes inherited from Node
float4x4 localTransform {}

float4x4 globalTransform {}


Constructor & Destructor Documentation

MeshInstance ( const std::shared_ptr< Mesh > &  mesh,
const std::string &  name = TypeNames[MESH_INSTANCE]
)

Creates a MeshInstance with the given Mesh

Member Function Documentation

std::shared_ptr<Node> duplicateInstance ( ) const
overrideprotectedvirtual

Reimplemented from lysa::Node::duplicateInstance()

const auto& getAABB ( ) const
inline

Returns the world space axis aligned bounding box

auto getCastShadows ( ) const
inline
const auto& getMesh ( ) const
inline

Returns the associated Mesh

MeshInstanceData getModelData ( ) const
const std::shared_ptr<Material>& getSurfaceMaterial ( uint32  surfaceIndex) const

Returns the material for a given surface

Parameters
surfaceIndexZero-based index of the surface
std::shared_ptr<Material> getSurfaceOverrideMaterial ( uint32  surfaceIndex)
const auto& getSurfaceOverrideMaterials ( ) const
inline
void setCastShadows ( bool  castShadows)
void setProperty ( const std::string &  property,
const std::string &  value
)
overrideprotectedvirtual

Sets a property by its name and value. Currently, not all properties in all node classes are supported.

Reimplemented from lysa::Node::setProperty()

void setSurfaceMaterial ( uint32  surfaceIndex,
const std::shared_ptr< Material > &  material
)

Changes the material of a given surface

Parameters
surfaceIndexZero-based index of the Surface
materialNew material for the Surface
void setSurfaceOverrideMaterial ( uint32  surfaceIndex,
const std::shared_ptr< Material > &  material
)

Friends And Related Function Documentation

bool operator< ( const MeshInstance &  a,
const MeshInstance &  b
)
friend
